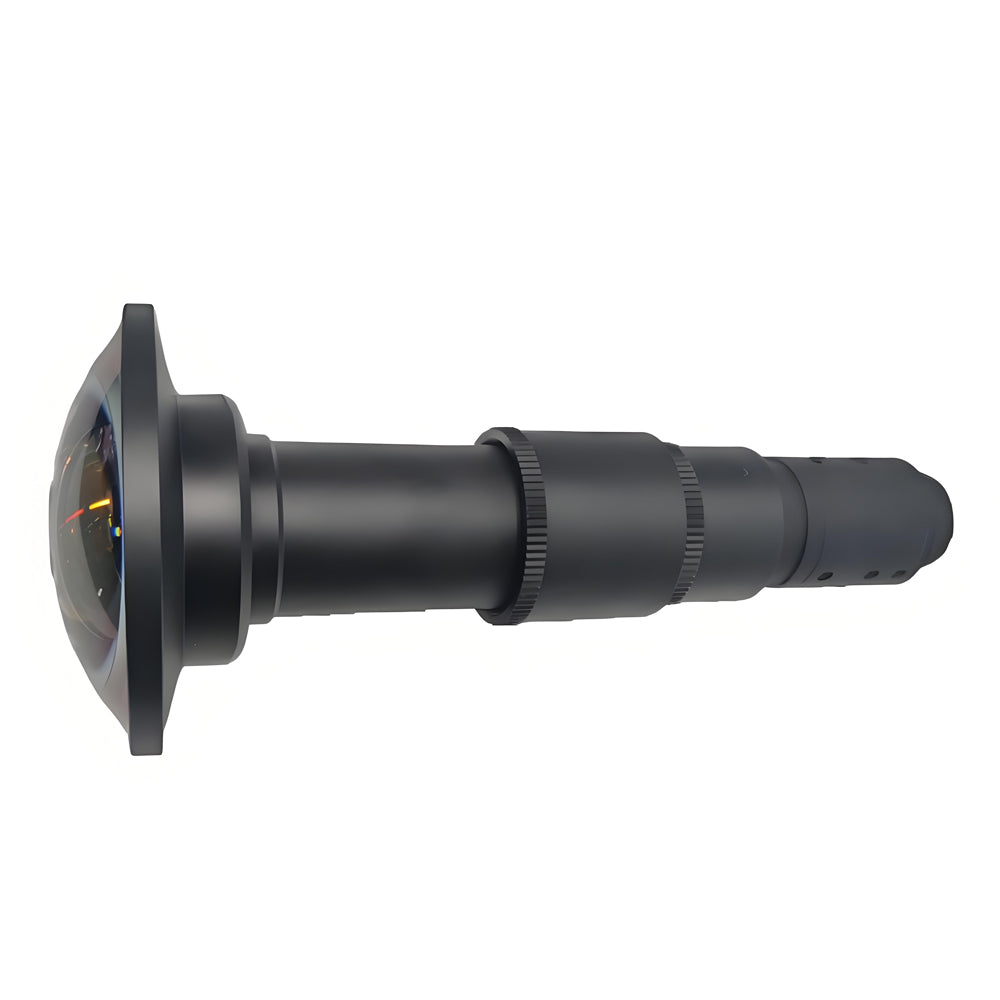

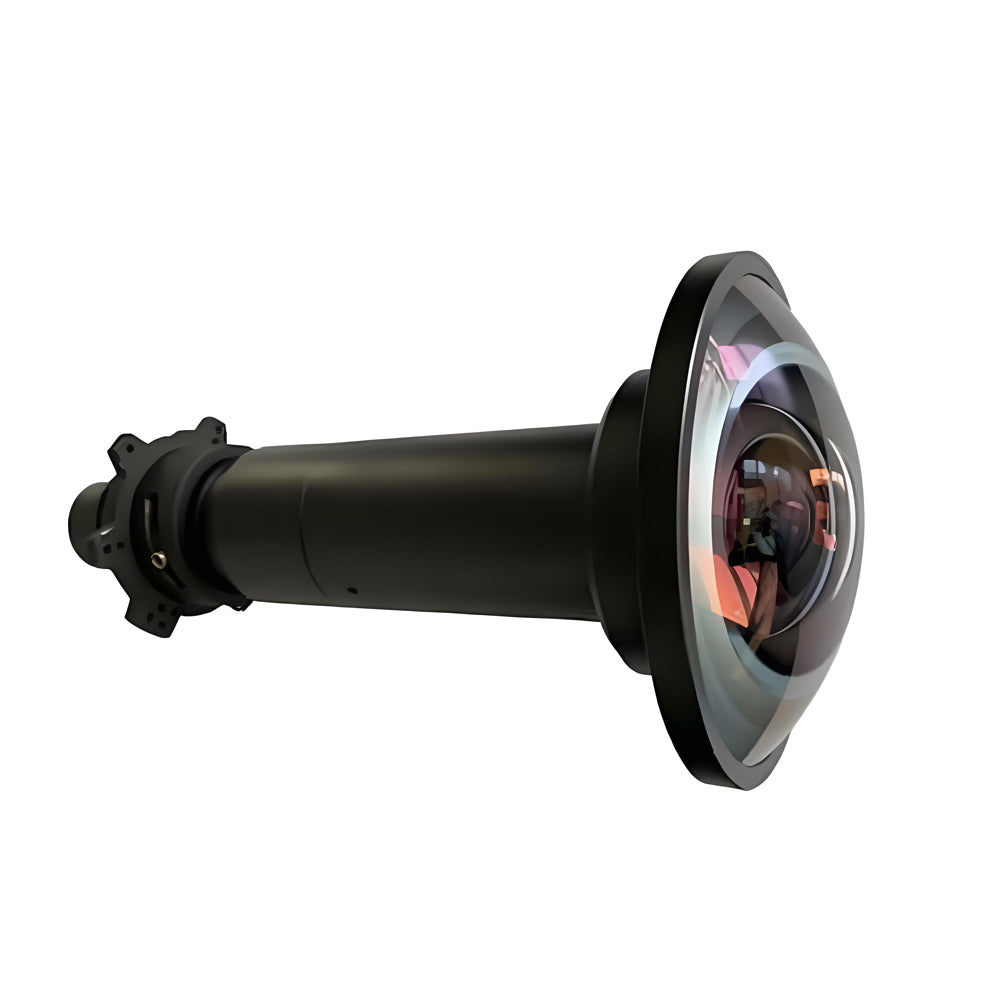

New Fish-eye Lens for 0.67" 3LCD Epson Large Venue Projectors(Model: SNV-F300)

New Fish-eye Lens for 0.67" 3LCD Epson Large Venue Projectors

General Information:

1. Lens Type: Fixed Focus, Telecentric, Manual Focusing
2. Original Chip Size: 0.67” (WUXGA, 1920×1200)

Key Specifications:

• Max Half-Angle: 92°
• Focal Length: 3.00mm
• Image Circle: 9.1mm
• Aperture (F#): F2.1
• Focus Range: 600mm to infinity
• MTF Performance:
  • Center: 66% @ 67 lp/mm
  • Edge: 60% @ 67 lp/mm
• Lateral Color Shift:
  • R-G: <4µm
  • B-G: <2µm
• F-Theta Distortion: -4% (max)
• Dimensions (Max.): φ122 × 258mm
• Lens Materials: Metal + Glass

Compatible Projectors & Vertical Projection Angles:

• DLP Projector (0.67”, 16:10): 184°
• 3LCD Projector (0.76”, 16:10): 184°
• 3LCD Projector (0.64”, 16:10): 174°
• 3LCD Projector (0.63”, 4:3): 184°

Summary & Applications:

• Telecentric design ensures minimal distortion and uniform magnification.
• Supports ultra-wide projection angles (up to 184° vertical).
• High MTF values (66% center, 60% edge @ 67 lp/mm) indicate sharp and high-contrast imaging.
• Ideal for DLP & 3LCD projectors in applications such as digital signage, simulation, and large-format displays.
