7500 Ansi Lumens DLP Education Projector for Home Theater Commercial Display Teaching Classroom
7500 Ansi Lumens DLP Education Projector for Home Theater Commercial Display Teaching Classroom
Couldn't load pickup availability
|
Engineering Projector----Model No: VE-550U/VE650U/VE750U
|
||
|
Item
|
Product Characteristic
|
Product parameters
|
|
OPTICS
|
Projection technology
|
America DLP technology
|
|
Display Chip
|
TI 0.8 inch DMD
|
|
|
Brightness
|
5500/6500/7500 ANSI Lumens
|
|
|
Light source
|
Laser
|
|
|
JBMA Uniformity
|
>90%
|
|
|
Dynamic Contrast Ratio
|
5 000 000 : 1
|
|
|
Optical Distortion
|
0.5%
|
|
|
Standard Resolution
|
WUXGA 1920*1200 Support up to 4K 3840*2160P
|
|
|
PROJECTION
|
Throw Ratio
|
0.5 - 2.25 （customize service available）
|
|
Throw Range
|
100-300 inches
|
|
|
Lens adjust range
|
Vertical: ±110% ，Horzontal: ±50%
|
|
|
Aspect Ratio
|
16:10
|
|
|
Zoom Ratio
|
x1.3
|
|
|
Focus
|
Manual
|
|
|

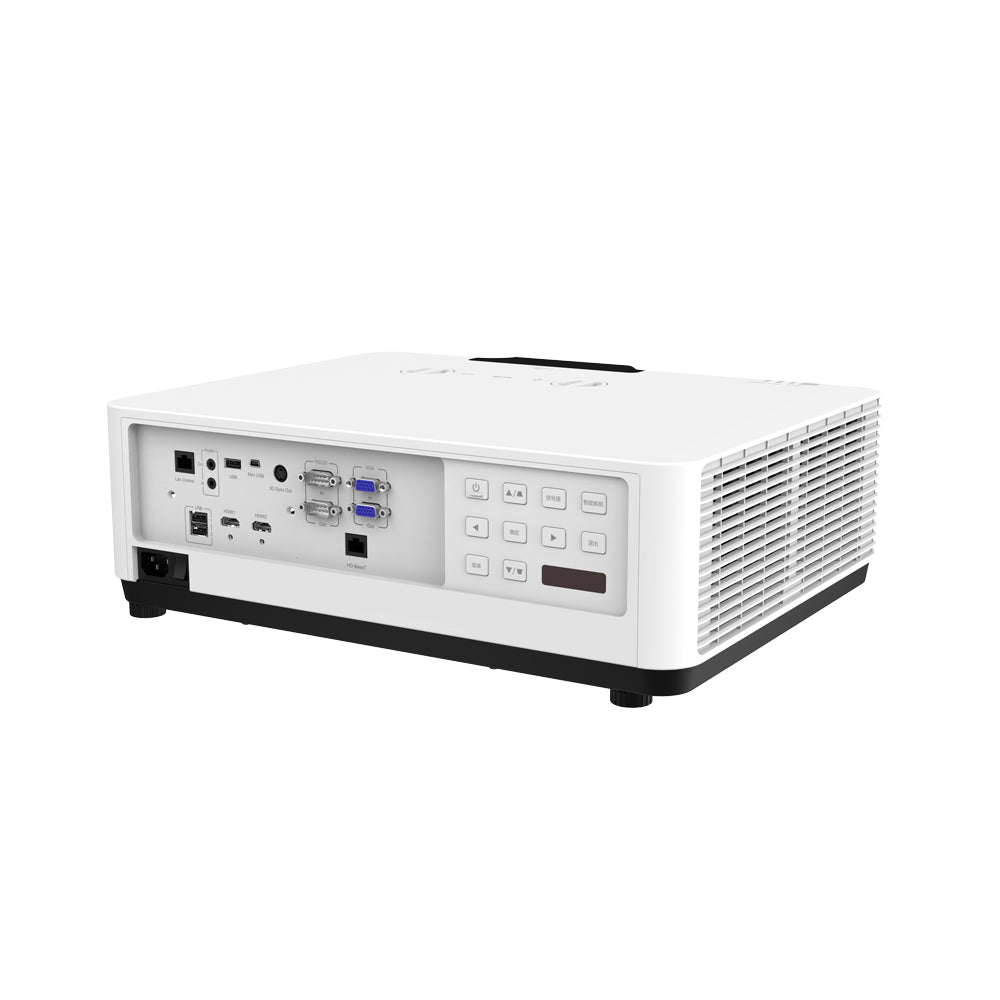

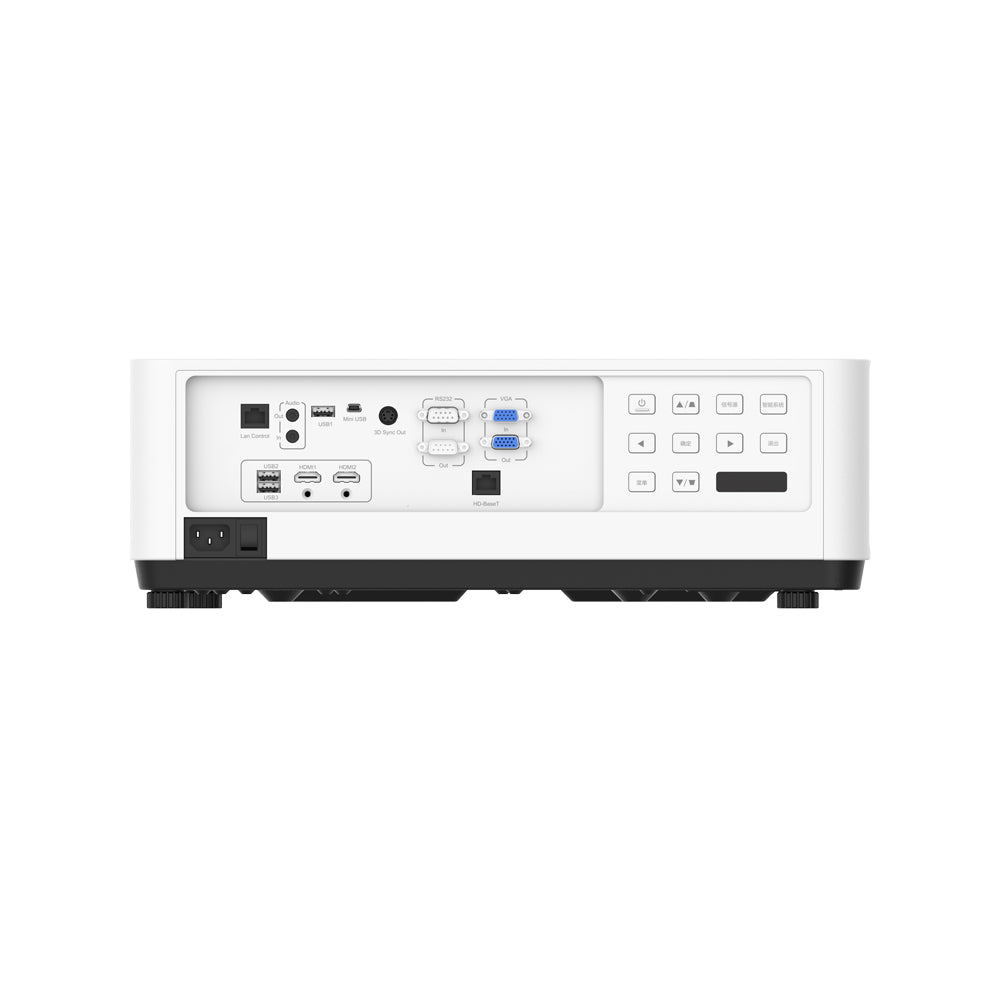

Interfaces
|
Input interface
|
VGA IN*1, AUDIO IN*1, HDMI*2, HD-SASET*1(option), USB-A*2
|
|
Output interface
|
VGA OUT*1, AUDIO OUT (Mini Jack 3.5mm)*1, 3D SYNC OUT*1, USB-A (5V)*1
|
|
|
Control interface
|
RS232 INPUT*1, RJ45, USB FOR BOOTING
|
|
|
ELECTRICAL SPECIFICATIONS
|
Total Power Consumption
|
320W, standby mode＜0.5W
|
|
Power Performance
|
AC100-240V,50/60Hz
|
|
|
OTHER PARAMETERS
|
Product Size
|
440*358*148mm
|
|
Package Size
|
740*695*385mm
|
|
|
Net Weight
|
10kg
|
|
|
Gross Weight
|
38kg
|
|
|
Items in package
|
||
|
Power cable, remote, projector+Lens
|
||
Advanced 0.8" Telecentric Laser Projector – Key Features
Superior Optical Performance
Industry-first 0.8" telecentric laser engine – Delivers 30% higher peak brightness and exceptional color accuracy.
Static contrast ↑50% – Sharper image details & deeper blacks.
Red laser optimization – DMS diffraction tech boosts red brightness +15%.
Optical efficiency ↑20% – Advanced power conversion & HEP chip packaging for better thermal stability. (VS 0.67" chip performance)
Telecentric Optical Design
90% brightness uniformity – Consistent color & clarity across the entire image.
SLPL Dual-Laser Patented Tech
Eliminates speckles, color fringing, and eye strain – Enables mass adoption of tri-laser projection.
Versatile Connectivity
Video: HDMI 1.4/2.0, HDBaseT (optional), VGA, 3D SYNC.
Control: RS-232, RJ45, TCP/IP, PJLink (Class 1), Web Browser.
Convenience: USB-A direct playback, mini audio jack.
Flexible Installation
Lens options: Standard 1.3–1.6x zoom; optional 0.6–2.1 ratio (user-replaceable).
Lens shift: ±40% vertical / ±20% horizontal (1.3x); ±50% vertical (1.6x).
360° mounting – Fits any angle for specialized environments.
Central balanced lens – Ensures stability (10% centerline deviation).
Network & Control
Supports PJLink, TCP/IP, Web Browser – Compatible with multi-brand systems.
