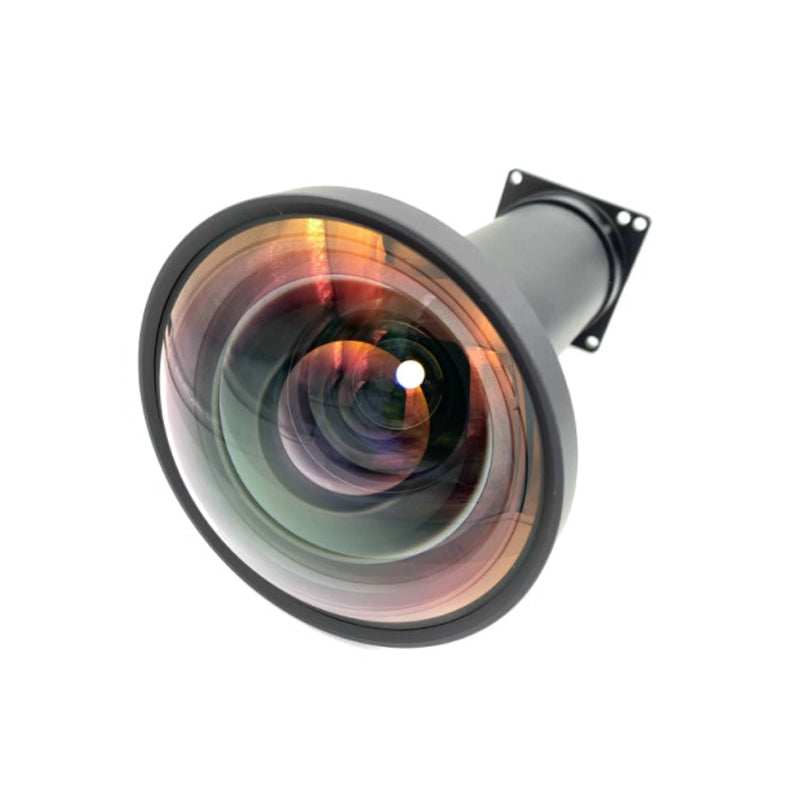

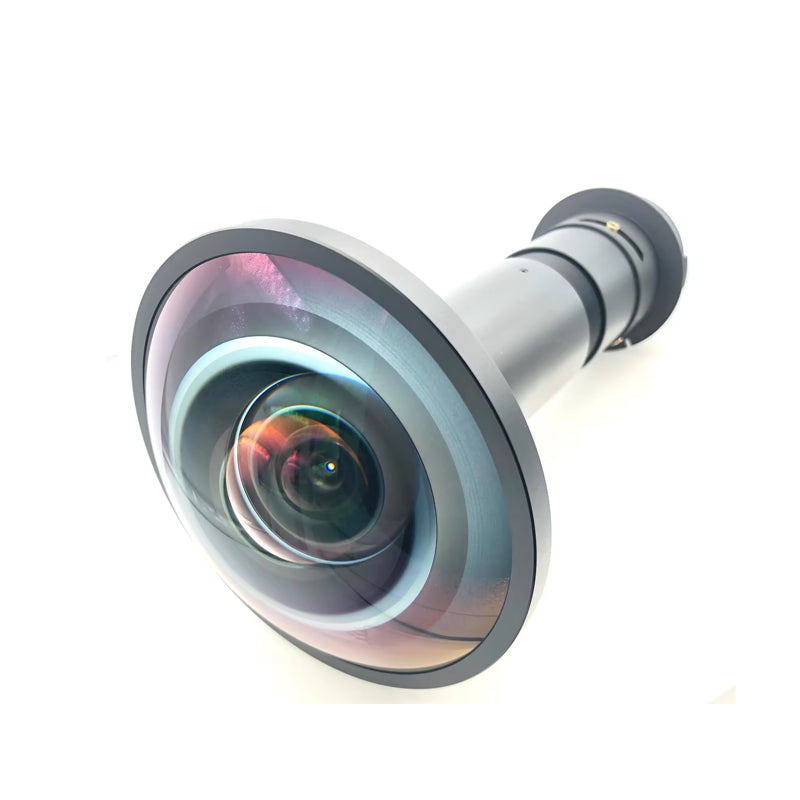

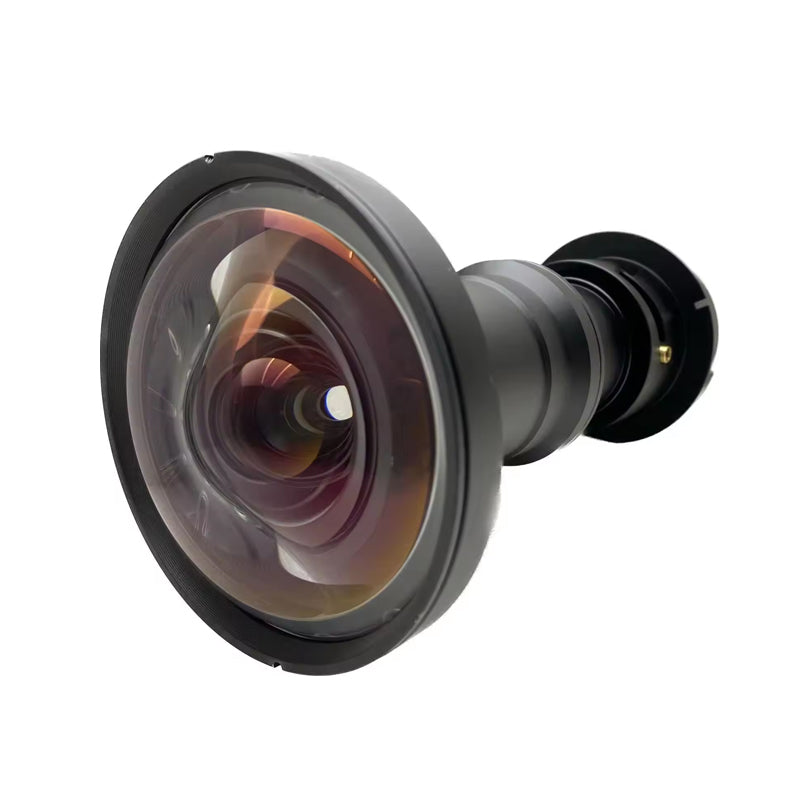

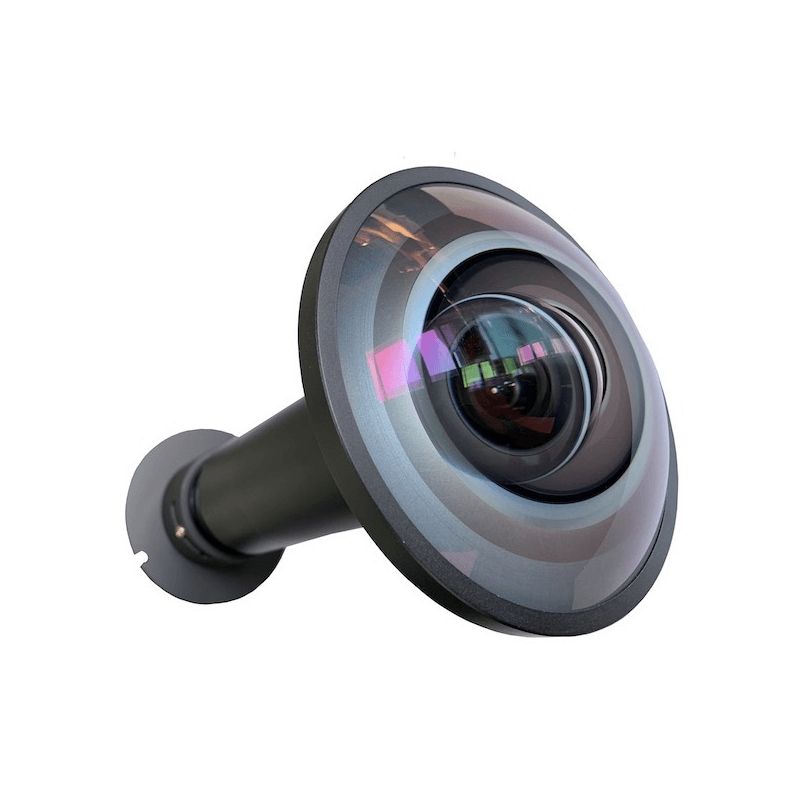

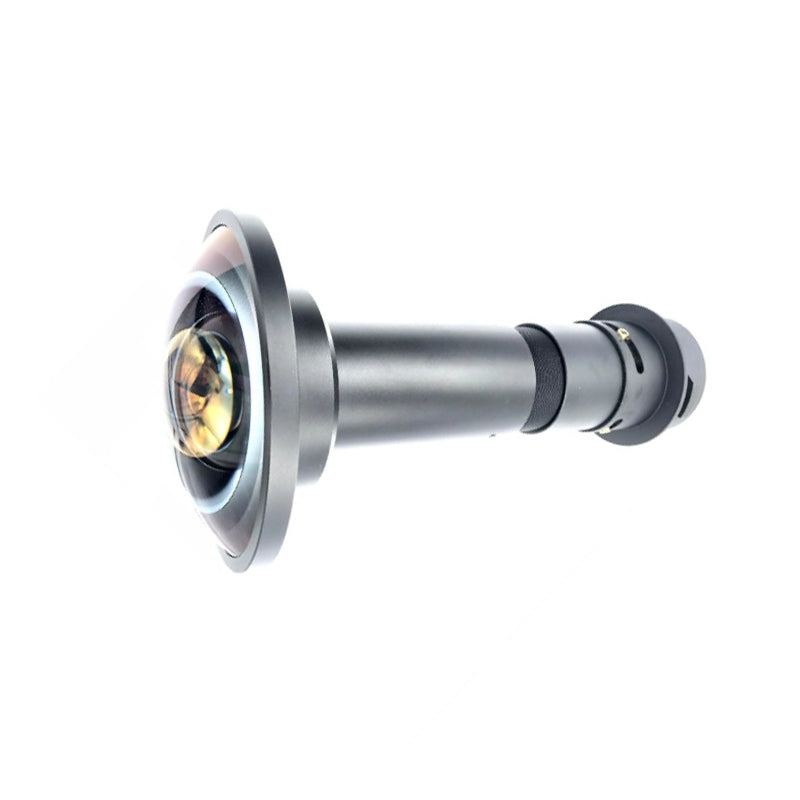

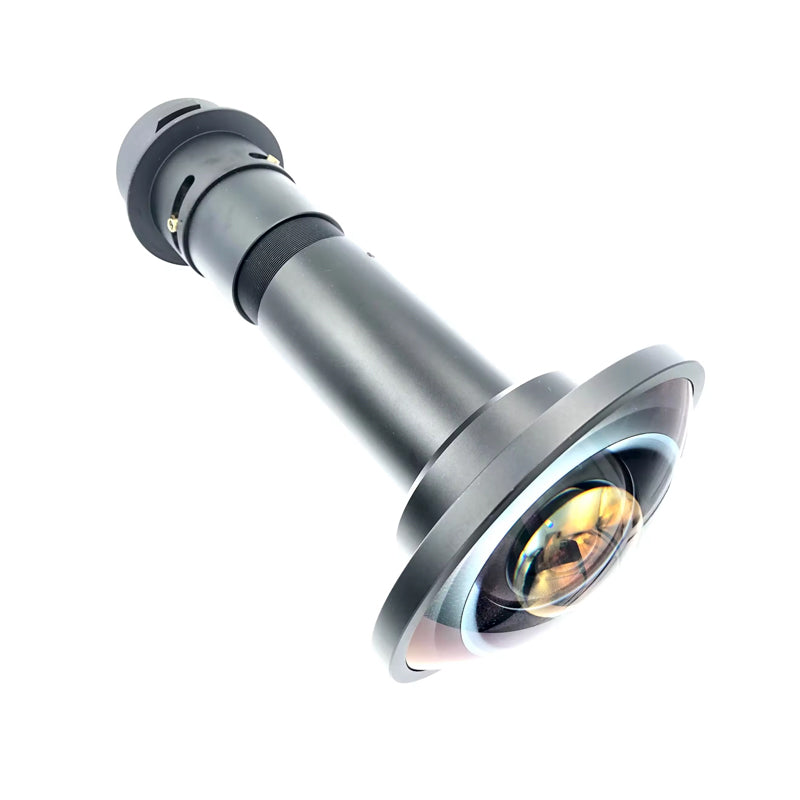

3LCD 0.64" | 174º Fisheye Lens For Large Venue Projector

Elevate your projection capabilities with the state-of-the-art 3LCD 0.64" Fisheye Lens (Model Name: VSF30-L064), designed for top-tier large venue projectors from leading brands such as NEC, EIKI, Panasonic, Hitachi, and EPSON. This specialized lens is the perfect solution for immersive presentations, providing an ultra-wide projection angle of 174º that captures every detail in stunning clarity.

Key Features of the VSF30-L064 Fisheye Lens:

High-Resolution Capability: Equipped with a 0.64" WUXGA resolution, this lens offers exceptional image quality and vibrant colors, making it ideal for dynamic visual displays in large venues.

Fixed Focus Design: The lens maintains sharp focus across the entire projection area, ensuring that your images remain clear and precise throughout your presentation without the need for constant adjustments.

Telecentric Optics: Boasting telecentric design, this lens guarantees consistent brightness and color fidelity, crucial for delivering professional-level visual experiences.

Enhanced Light Gathering: With an F-stop of F2.1 and a focal length of 3.00mm, this lens captures abundant light to deliver bright and vivid images, even in less-than-ideal lighting conditions.

Superior Optical Performance: Achieving an impressive Modulation Transfer Function (MTF) of greater than 65% at 67lp/mm, this lens ensures that critical details are rendered clearly.

Minimal Chromatic Aberration: With a maximum chromatic aberration of <=0.5 pixels, this lens minimizes color fringing, providing a sharper image with accurate color representation.

Controlled Distortion: Featuring a maximum distortion of -4%, this fisheye lens creates a unique visual effect while maintaining image integrity, making it suitable for creative presentations and events.

Robust Build Quality: Crafted from high-quality glass and metal, the VSF30-L064 lens is designed for durability, ensuring reliable performance in demanding environments.

Versatile Projection Angle: With a wide vertical projection angle of 174º, this lens is perfect for covering expansive areas, making it ideal for interactive installations, art displays, and large venue presentations.

Specification:

Model Name：VSF30-L064
Resolution：0.64"WUXGA
Focusing Type：Fixed Focus
Telecentric：Yes
F/#：F2.1
Focal Length (f)：3.00mm
MTF(@67lp/mm)：>65%
Chromatic Aberration：<=0.5 pixel
Distortion：-4% Max
Max.Diameter*L(mm)：∮122x258
Materials：Glass+Metal
Projection Angle V (º)：174º

Contact Us for Expert Guidance

To find the perfect fisheye lens for your specific projector model, please reach out to us. Our knowledgeable team is ready to provide personalized assistance and ensure you select the optimal lens for your setup. We rigorously test all projector lenses for quality assurance before shipping, so you can trust in the performance and reliability of your purchase.

Transform your visual presentations with the 3LCD 0.64" Fisheye Lens, and immerse your audience with captivating, high-quality imagery that leaves a lasting impression. Experience the cutting-edge technology that sets your visuals apart!
