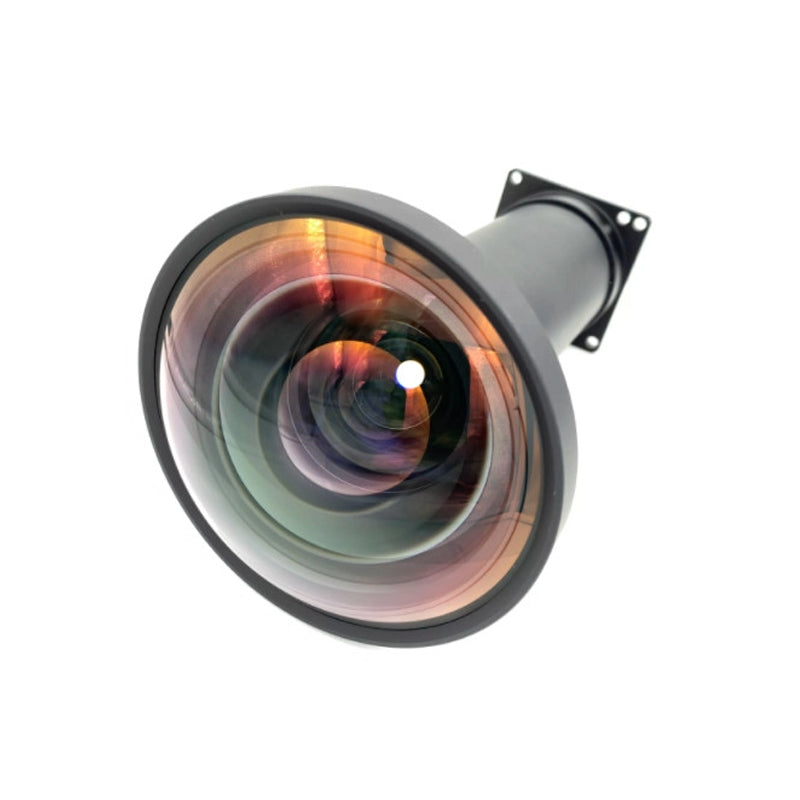

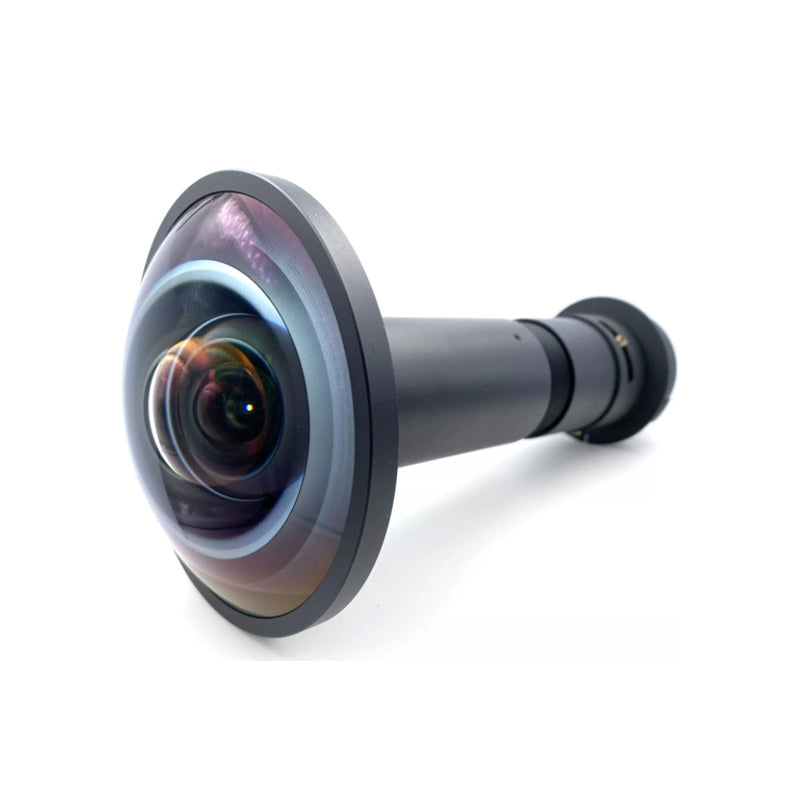

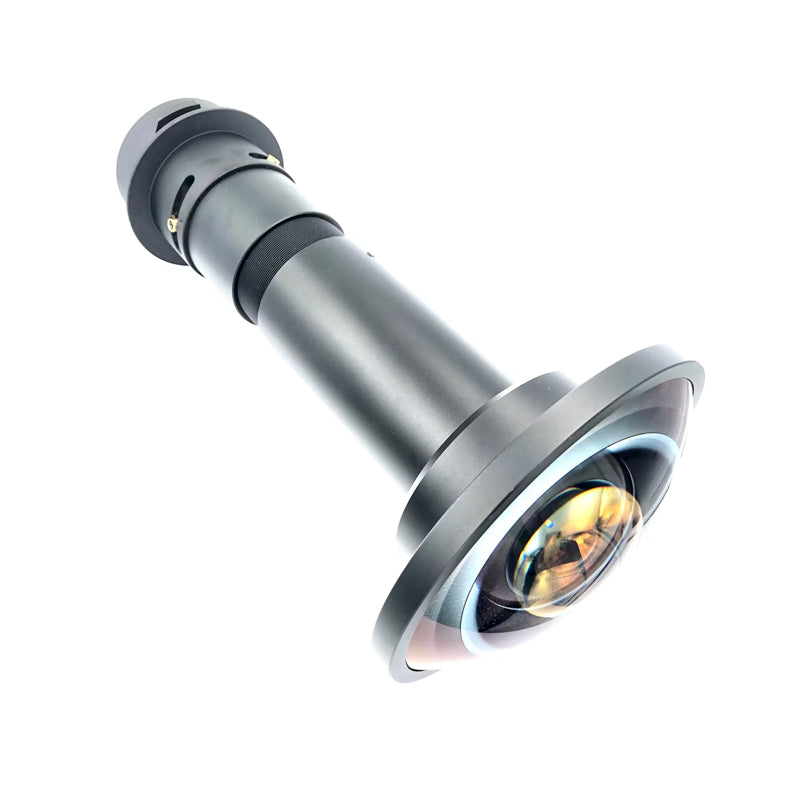

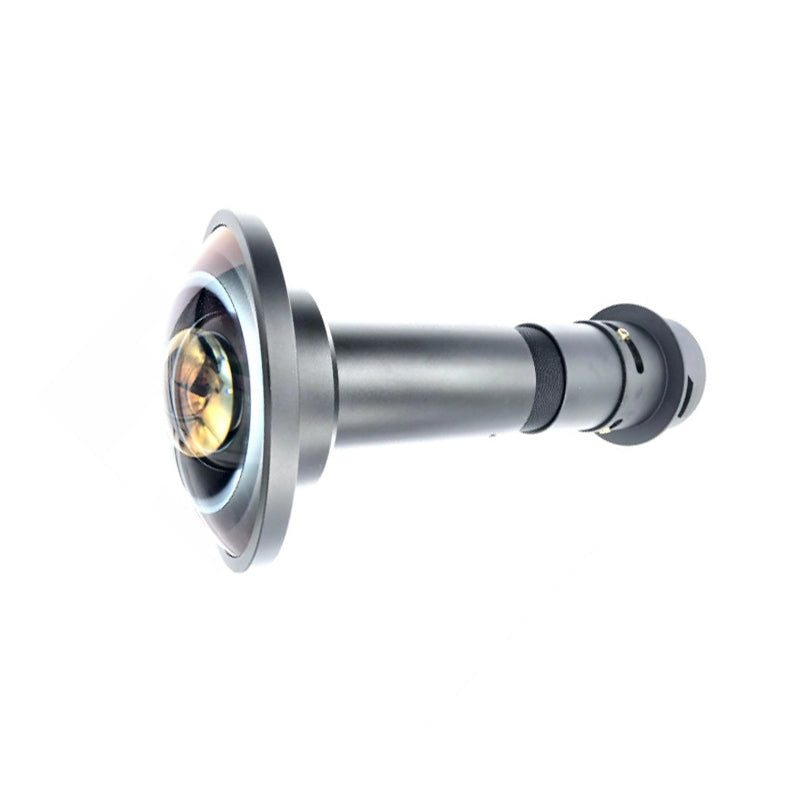

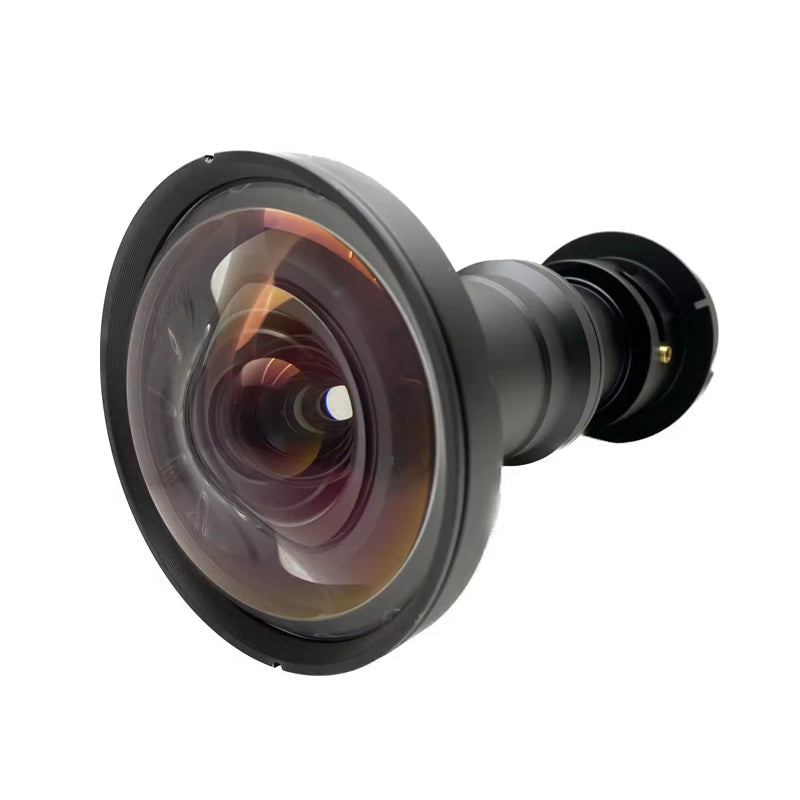

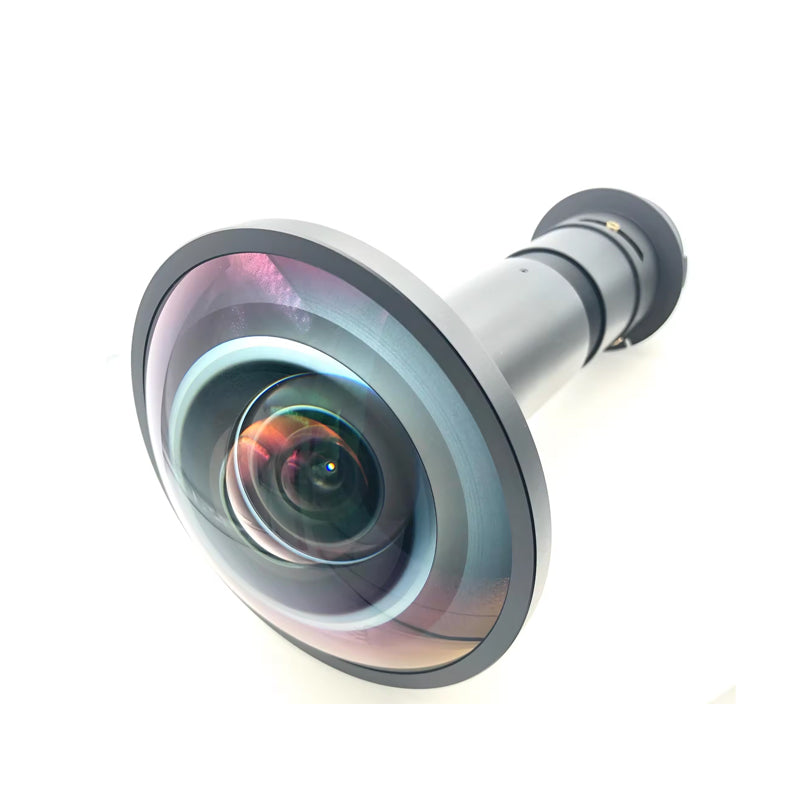

3LCD 0.63” 4:3 | 184º Fisheye Lens For Large Venue Projector

Unleash the full potential of your large venue projects with the state-of-the-art 3LCD 0.76" Fisheye Lens (Model Name: VSF30-L063). Designed for compatibility with leading projector brands such as Christie, Vivitek, Benq, DP, NEC, Ricoh, Optoma, Sonoc, Hitachi, Panasonic, Acer, and Boxlight etc., this high-performance fisheye lens provides an ultra-wide projection angle, making it perfect for immersive presentations, artistic displays, and interactive installations.

1. Type of Lens: Fixed Focus, Telecentric, Manual Focusing

2. Original Chip Size: 0.67” (WUXGA, 1920x1200)

3. Parameters:

   • Max Half-Angle: 92°

   • Focal Length: 3.00mm

   • Image Circle: 9.1mm

   • F#: F2.1

   • Focus Range: 600mm to infinity

   • MTF Center: 66% @ 67lp/mm

   • MTF Edge: 60% @ 67lp/mm

   • Lateral Color R-G: <4um

   • Lateral Color B-G: <2um

   • F-Theta Distortion: -4% Max

   • Size (mm): Max. φ122 x 258

   • Lens Materials: Metal + Glass

4. Projectors Applied:

   • DLP Projector (0.67” 16:10): Projection Angle (V): 184°

   • 3LCD Projector (0.76” 16:10): Projection Angle (V): 184°

   • 3LCD Projector (0.64” 16:10): Projection Angle (V): 174°

   • 3LCD Projector (0.63” 4:3): Projection Angle (V): 184°
